Blog: This Icon Does Not Exist — An Application of GANs to Icon Generation


Generative Adversarial Networks (aka. GANs) are one of the most important type of neural networks. As they provide a direct way to create something new out of the thin air. There is a lot of literature out there which explains GANs from their working in theory to their practical implications.

In this article, I will share my experience of applying GAN to a specific problem. The problem statement is “Given large enough Icons dataset, can a GAN learn its distribution?” GANs are well know to learn the underlying distribution of data. This helps not only to fit the entire dataset in a single neural network but also related data points not present in the dataset.

this*doesnotexist.com is a general trend many people use to display output of GAN for their application. e.g. thispersondoesnotexist.com is website which shows new face generated by a GAN. Hence the title of this article.

I started off this experiment by implementing vanilla DC GAN and then fitting it to MNIST which worked as expected. Next step was to scrape data around the internet. I wrote some scraping scripts, I was able to scrape around ~1000 different icons of size 512×512. Even though this data is pretty small compared to 60,000 MNIST samples, it should still give a baseline result.

The data I collected was not clean, so I wrote some cleaning scripts and converted icons to mimic MNIST like style:

Sample Icons from the dataset

I used Google Colab for training my network. They (sometime) offer Tesla T4 for free for at max 24 hours (can be interrupted in between). Tesla T4 has comparable performance with RTX 2070. You can use Google Drive to provide storage for Colab. So if you modify your code so that interruptions, jupyter notebook and Google Drive does not affect you, you get a free high performance GPU for training.

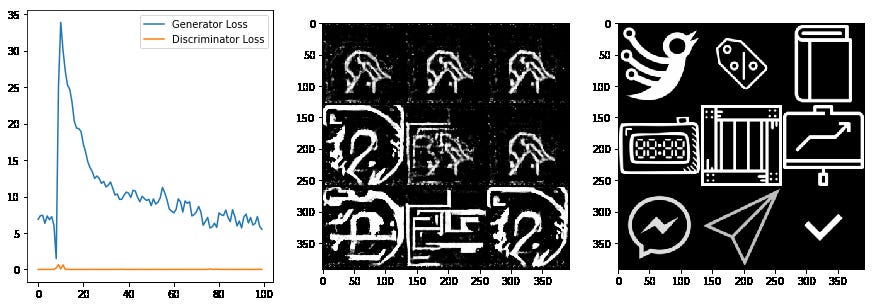

Following are snapshots from training (losses in left, output in the middle and ground truth in right):

It started off as expected, trying to pick up some patterns:

Epoch ~ 1

After 10 epochs, it is trying to produce basic patterns:

Epoch ~ 10

After around 50 epochs, it is producing blurry and broken shapes but good progress so far :D

Epoch ~ 40

But around 70 epochs, shapes look like hand drawn icons:

Epoch ~ 70

However, after 500 epochs, generator loss became very high but discriminator loss got almost zero which means discriminator got too good and generator lost this game.

Epoch ~ 700

Thanks for reading this article. This project is work in progress and I will share the update once I have some promising results. In the meantime you can checkout the repository I created for this project. If you have any questions, let me know the comments.
